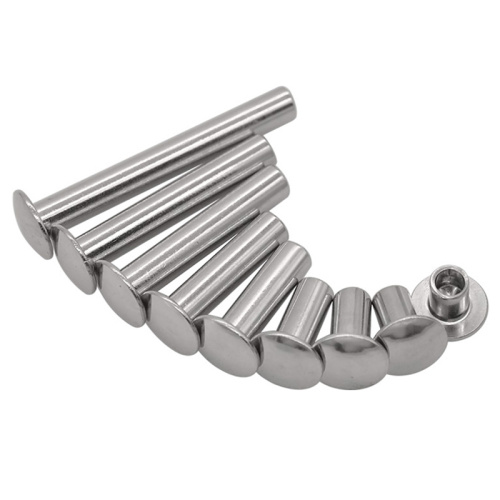

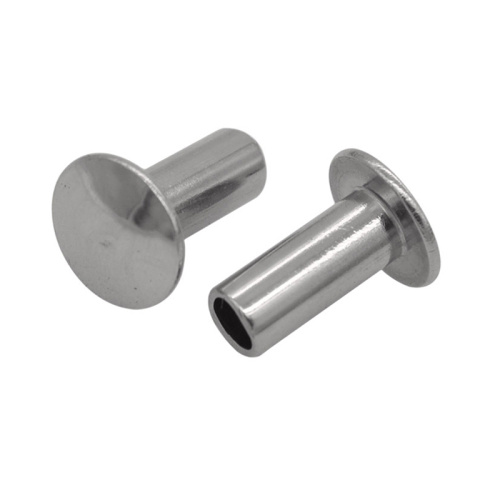

Stainless Steel Oval Head Semi-Tubular
Rivets Stainless Steel Oval Head Semi-Tubular Rivets
Material: Aluminum or Aluminum Alloy: Al6061, Al6063, Al7075, Copper, Bronze
Finish: Plain
Standard: ISO, DIN, ANSI, JIS, BS and Non-standard
Sample Service: If we have stock, we can provide free samples
Certificate: ISO9001, CE, SGS, BV
Advantage: 1. Competitive price; 2. OEM service available
Packing: Bulk in cartons (25kg Max.) + wood Pallet or according to customer special demand
Payment terms: FOB, CIF, CFR, L/C, or others.
Delivery method: by sea, by air or by express service
Lead Time: 7-15 work days after order confirmed
Application: Structural Steel; Metal Building; Oil & Gas; Tower & Pole; Wind Energy; Mechanical Machine; Automobile; Home Decorating and etc.
Notes: Special specifications and marks can be made according to customers requirements
| Size | d | dk | k | d1 | t |
| max | min | max | min | max | min | max | min | max | min |
| 1.2 | 1.26 | 1.14 | 2.6 | 2.2 | 0.6 | 0.4 | 0.66 | 0.56 | 1.44 | 0.96 |
| 1.4 | 1.46 | 1.34 | 3 | 2.6 | 0.7 | 0.5 | 0.77 | 0.65 | 1.64 | 1.16 |
| 1.6 | 1.66 | 1.54 | 3.44 | 2.96 | 0.8 | 0.6 | 0.87 | 0.75 | 1.84 | 1.36 |
| 2 | 2.06 | 1.94 | 4.24 | 3.76 | 0.9 | 0.7 | 1.12 | 0.94 | 2.24 | 1.76 |
| 2.5 | 2.56 | 2.44 | 5.24 | 4.76 | 0.9 | 0.7 | 1.62 | 1.44 | 2.74 | 2.26 |
| 3 | 3.06 | 2.94 | 6.24 | 5.76 | 1.2 | 0.8 | 2.12 | 1.94 | 3.24 | 2.76 |
| 3.5 | 3.58 | 3.42 | 7.29 | 6.71 | 1.4 | 1 | 2.32 | 2.14 | 3.79 | 3.21 |
| 4 | 4.08 | 3.92 | 8.29 | 7.71 | 1.5 | 1.1 | 2.52 | 2.34 | 4.29 | 3.71 |
| 5 | 5.08 | 4.92 | 10.3 | 9.71 | 1.9 | 1.5 | 3.46 | 3.22 | 5.29 | 4.71 |
| 6 | 6.08 | 5.92 | 12.4 | 11.7 | 2.4 | 2 | 4.16 | 3.92 | 6.29 | 5.71 |
| 8 | 8.1 | 7.9 | 16.4 | 15.7 | 3.2 | 2.8 | 4.66 | 4.42 | 8.35 | 7.65 |
| 10 | 10.1 | 9.3 | 20.4 | 19.6 | 4.24 | 3.76 | 7.7 | 7.4 | 10.4 | 9.65 |
