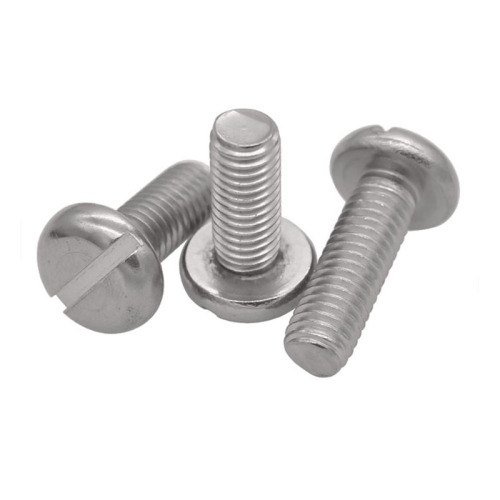

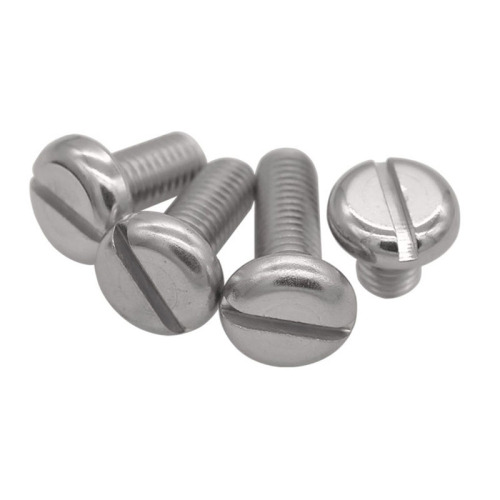

DIN85 Stainless Steel Slotted Pan Head
Machine Screws DIN85 Stainless Steel Slotted Pan Head Machine Screws
Surface Treatment:
- Plain
- Black / Blue / Color Zinc
- Chrome Plated
- Black / White Nickel
- Bronze Color
Material:
Stainless steel, carbon steel, aluminium, iron, brass, copper, according to your request
Head Style:
- Flat
- Round
- Pan
- Truss
- Bind
- Oval
- Brazier
- Button
- Fillister
- Pan Washer
- Indened Hexagon Washer
Grade:
- 4.8/5.8/6.8/8.8/10.9/12.9/A2-70/A4-70
Standard:
- DIN
- GB
- ISO
- JIS
- ANSI
- Non-standard
Size:
M3-M12, #6-#10, or as your requirement
Length:
10mm-105mm, OEM as your requirement
Sample:
If we have stock, we can provide free samples, but buyers need to pay for shipping
Delivery:
5-20 days
Packing:
PE/PP Bag + carton. Or OEM as your requirement
d
P
dk
k
n
t
| max | min | max | min | max | min | min |
| M1.6 | 0.35 | 3.2 | 2.9 | 1 | 0.86 | 0.6 | 0.46 | 0.35 |
| M2 | 0.4 | 4 | 3.7 | 1.3 | 1.16 | 0.7 | 0.56 | 0.5 |
| M2.5 | 0.45 | 5 | 4.7 | 1.5 | 1.36 | 0.8 | 0.66 | 0.6 |
| M3 | 0.5 | 5.6 | 5.3 | 1.8 | 1.66 | 1 | 0.86 | 0.7 |
| M3.5 | 0.6 | 7 | 6.64 | 2.1 | 1.96 | 1.2 | 1.06 | 0.8 |
| M4 | 0.7 | 8 | 7.64 | 2.4 | 2.26 | 1.51 | 1.26 | 1 |
| M5 | 0.8 | 9.5 | 9.14 | 3 | 2.86 | 1.51 | 1.26 | 1.2 |
| M6 | 1 | 12 | 11.57 | 3.6 | 3.3 | 1.91 | 1.66 | 1.4 |
| M8 | 1.25 | 16 | 15.57 | 4.8 | 4.5 | 2.31 | 2.06 | 1.9 |
| M10 | 1.5 | 20 | 19.48 | 6 | 5.7 | 2.81 | 2.56 | 2.4 |
Product Name
DIN85 Stainless Steel Slotted Pan Head Machine Screws
Shank Diameter
M1-M20 / According To Your Requirement
Material
Stainless steel, Brass, Copper, Carbon steel, Aluminum, alloy, zinc etc. / According To Your Requirement
Head Style
Hex head / Countersunk head / Pan head / Wafer Head / Bugle Head etc.
Thread
Fine Thread Or Coarse Thread or Hi-Lo Thread / M3 to M30, OEM according to your request
Length
5mm to 100mm etc, OEM according to your request
Surface Finishing
- Anodizing
- Polishing
- Powder coating
- Passivation
- Sandblasting
- Nickel plating
- Zinc plating
- Chrome plating
- Heat treatment
- Oxidation
- as per customer's requirement
Production Equipment
CNC punching machines, CNC milling machines, CNC turning machines, CNC machining center, Automatic lathes, Linear cutting, Grinding machine etc.
Delivery time
10-15 working days as usual, It will based on the detailed order quantity
After-sales Service
We will follow up every customer and solve all your problems satisfied after sales
QC
- Incoming material will be checked carefully before production.
- Strict processing quality control
- 100% inspection before shipment.
OEM/ODM
Available
